6.2. Example 3 - L-band Longslit Point Source - Using the “reduce” command line

We will reduce the GNIRS L-band longslit observation of “HD41335”, a Be-star, using the “reduce” command that is operated directly from the unix shell. Just open a terminal and load the DRAGONS conda environment to get started.

This observation uses the 10 l/mm grating, the long-red camera, a 0.1 arcsec slit, and is centered at 3.7 {\mu}m. The dither pattern is a standard ABBA sequence.

6.2.1. The dataset

If you have not already, download and unpack the tutorial’s data package. Refer to Downloading tutorial datasets for the links and simple instructions.

The dataset specific to this example is described in:

Here is a copy of the table for quick reference.

Science
N20180114S0121-124

Science flats
N20180114S0125-132

Telluric
N20180114S0113-116

BPM
bpm_20121101_gnirs_gnirsn_11_full_1amp.fits

6.2.2. Configuring the interactive interface

In ~/.dragons/, add the following to the configuration file dragonsrc:

[interactive]
browser = your_preferred_browser

The [interactive] section defines your preferred browser. DRAGONS will open the interactive tools using that browser. The allowed strings are “safari”, “chrome”, and “firefox”.

6.2.3. Set up the Local Calibration Manager

Important

Remember to set up the calibration service.

Instructions to configure and use the calibration service are found in Setting up the Calibration Service, specifically the these sections: The Configuration File and Usage from the Command Line.

We recommend that you clean up your working directory (playground) and start a fresh calibration database (caldb init -w) when you start a new example.

6.2.4. Create file lists

This data set contains science and calibration frames. For some programs, it could contain different observed targets and different exposure times depending on how you like to organize your raw data.

The DRAGONS data reduction pipeline does not organize the data for you. You have to do it. However, DRAGONS provides tools to help you.

The first step is to create input file lists. The tool “dataselect” helps with that. It uses Astrodata tags and “descriptors” to select the files and send the filenames to a text file that can then be fed to “reduce”. (See the Astrodata User Manual for information about Astrodata and for a list of descriptors.)

First, navigate to the playground directory in the unpacked data package:

cd <path>/gnirsls_tutorial/playground

6.2.4.1. A list for the flats

The GNIRS flats will be stacked together. Therefore it is important to ensure that the flats in the list are compatible with each other. You can use “dataselect” to narrow down the selection as required. Here, we have only the flats that were taken with the science and we do not need extra selection criteria.

dataselect ../playdata/example3/*.fits --tags FLAT -o flats.lis

6.2.4.2. A list for the telluric

DRAGONS does not recognize the telluric star as such. This is because, at Gemini, the observations are taken like science data and the GNIRS headers do not explicitly state that the observation is a telluric standard. In most cases, the observation_class descriptor can be used to differentiate the telluric from the science observations, along with the rejection of the CAL tag to reject flats and arcs.

dataselect ../playdata/example3/*.fits --xtags=CAL --expr='observation_class=="partnerCal"' -o telluric.lis

6.2.4.3. A list for the science observations

The science observations can be selected from the observation class, science, that is how they are differentiated from the telluric standards which are partnerCal.

If we had multiple targets, we would need to split them into separate lists. To inspect what we have we can use dataselect and showd together.

dataselect ../playdata/example3/*.fits --expr='observation_class=="science"' | showd -d object

--------------------------------------------------
filename                                    object
--------------------------------------------------
../playdata/example3/N20180114S0121.fits   HD41335
../playdata/example3/N20180114S0122.fits   HD41335
../playdata/example3/N20180114S0123.fits   HD41335
../playdata/example3/N20180114S0124.fits   HD41335

Here we only have one object from the same sequence. If we had multiple objects we could add the object name in the expression.

dataselect ../playdata/example3/*.fits --expr='observation_class=="science" and object=="HD41335"' -o sci.lis

6.2.5. Bad Pixel Mask

Starting with DRAGONS v3.1, the bad pixel masks (BPMs) are handled as calibrations. They are downloadable from the archive instead of being packaged with the software. They are automatically associated like any other calibrations. This means that the user now must download the BPMs along with the other calibrations and add the BPMs to the local calibration manager.

See Get the BPMs in Tips and Tricks to learn about the various ways to get the BPMs from the archive.

To add the static BPM included in the data package to the local calibration database:

caldb add ../playdata/example3/bpm*.fits

6.2.6. Master Flat Field

GNIRS longslit flat fields are normally obtained at night along with the observation sequence to match the telescope and instrument flexure.

The GNIRS longslit flatfield requires only lamp-on flats. Subtracting darks only increases the noise.

The flats will be stacked.

reduce @flats.lis

GNIRS data are affected by a “odd-even” effect where alternate rows in the GNIRS science array have gains that differ by approximately 10 percent. We have added a correction in normalizeFlat that levels off the rows to help with the fit. Here it works well, in some cases you might see a some split when you run normalizeFlat in interactive mode. The objective, if you see the split, is to get a fit that falls inbetween the two sets of points, with a symmetrical residual fit.

Note that you are not required to run in interactive mode, but you might want to if flat fielding is critical to your program.

In this case, because of the rapid variations around pixel 800, increasing the order could improve the final results. Setting order=50 fits that area well while still offering a good fit elsewhere.

reduce @flats.lis -p interactive=True

The interactive tools are introduced in section Interactive tools.

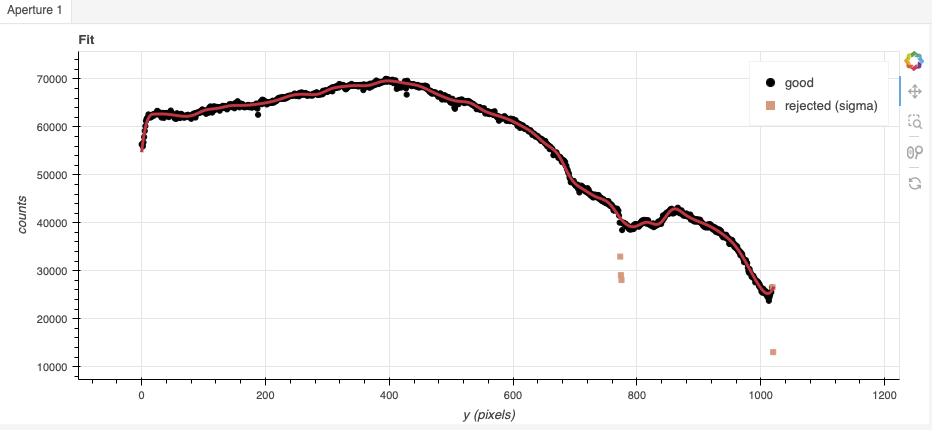

Even-odd effect in flats

6.2.7. Processed Arc - Wavelength Solution

The wavelength solution for L-band and M-band data are derived from the wavelengths of strong peaks in the emission spectrum of the sky. The quality of the wavelength solution depends on the width and strength of the telluric features.

Wavelength calibration from peaks is better done in interactive mode despite our efforts to automate the process.

To use the emission features in the sky spectrum, we invoke the makeWavecalFromSkyEmission recipe.

reduce @sci.lis -r makeWavecalFromSkyEmission -p interactive=True

In the L-band, it is very important to inspect the feature identification. Fortunately, in our case, using the default does lead to a correct feature identification.

Zooming in:

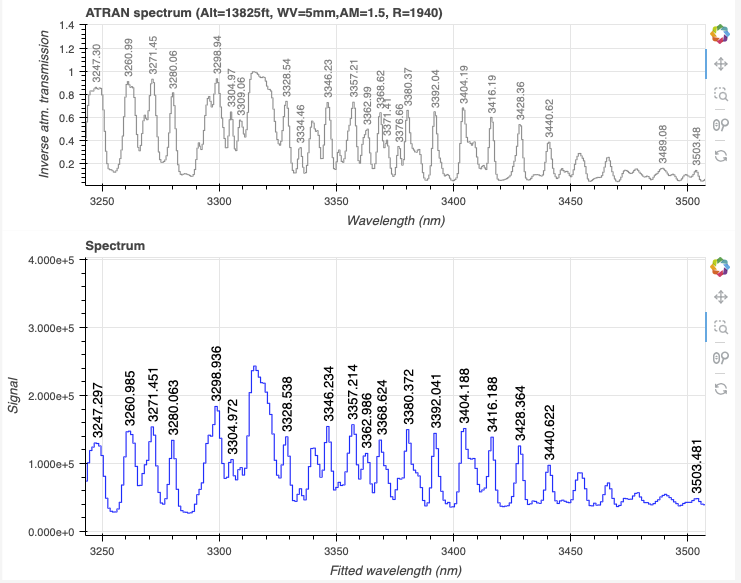

Arc line identifications

Tip

If the feature identification were to be incorrrect, often changing the minimum SNR for peak detection to 5 and recalculating (“Reconstruct points”) will help find the good solution.

6.2.8. Telluric Standard

The telluric standard observed before the science observation is “hip 28910”. The spectral type of the star is A0V.

To properly calculate and fit a telluric model to the star, we need to know its effective temperature. To properly scale the sensitivity function (to use the star as a spectrophotometric standard), we need to know the star’s magnitude. Those are inputs to the fitTelluric primitive.

The default effective temperature of 9650 K is typical of an A0V star, which is the most common spectral type used as a telluric standard. Different sources give values between 9500 K and 9750 K and, for example, Eric Mamajek’s list “A Modern Mean Dwarf Stellar Color and Effective Temperature Sequence” (https://www.pas.rochester.edu/~emamajek/EEM_dwarf_UBVIJHK_colors_Teff.txt) quotes the effective temperature of an A0V star as 9700 K. The precise value has only a small effect on the derived sensitivity and even less effect on the telluric correction, so the temperature from any reliable source can be used. Using Simbad, we find that the star has a magnitude of K=4.523, which is the closest waveband to our observation.

Instead of typing the values on the command line, we will use a parameter file to store them. In a normal text file (here we name it “hip28910.param”), we write:

-p
fitTelluric:bbtemp=9700
fitTelluric:magnitude='K=4.523'

Then we can call the reduce command with the parameter file. The telluric fitting primitive can be run in interactive mode.

Note that the data are recognized by Astrodata as normal GNIRS longslit science spectra. To calculate the telluric correction, we need to specify the telluric recipe (-r reduceTelluric), otherwise the default science reduction will be run.

reduce @telluric.lis -r reduceTelluric @hip28910.param -p fitTelluric:interactive=True

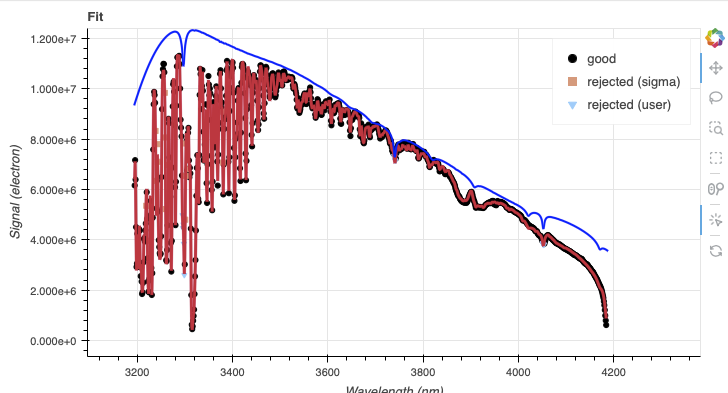

fit to the telluric standard

The defaults appear to work well in this case. The blue end is strongly affected by the telluric absorption. It is okay for the blue line, the expected continuum, to be above the data.

6.2.9. Science Observations

The science target is a Be star. The sequence is one ABBA dither pattern. DRAGONS will flatfield, wavelength calibrate, subtract the sky, stack the aligned spectra, extract the source, and finally remove telluric features and flux calibrate.

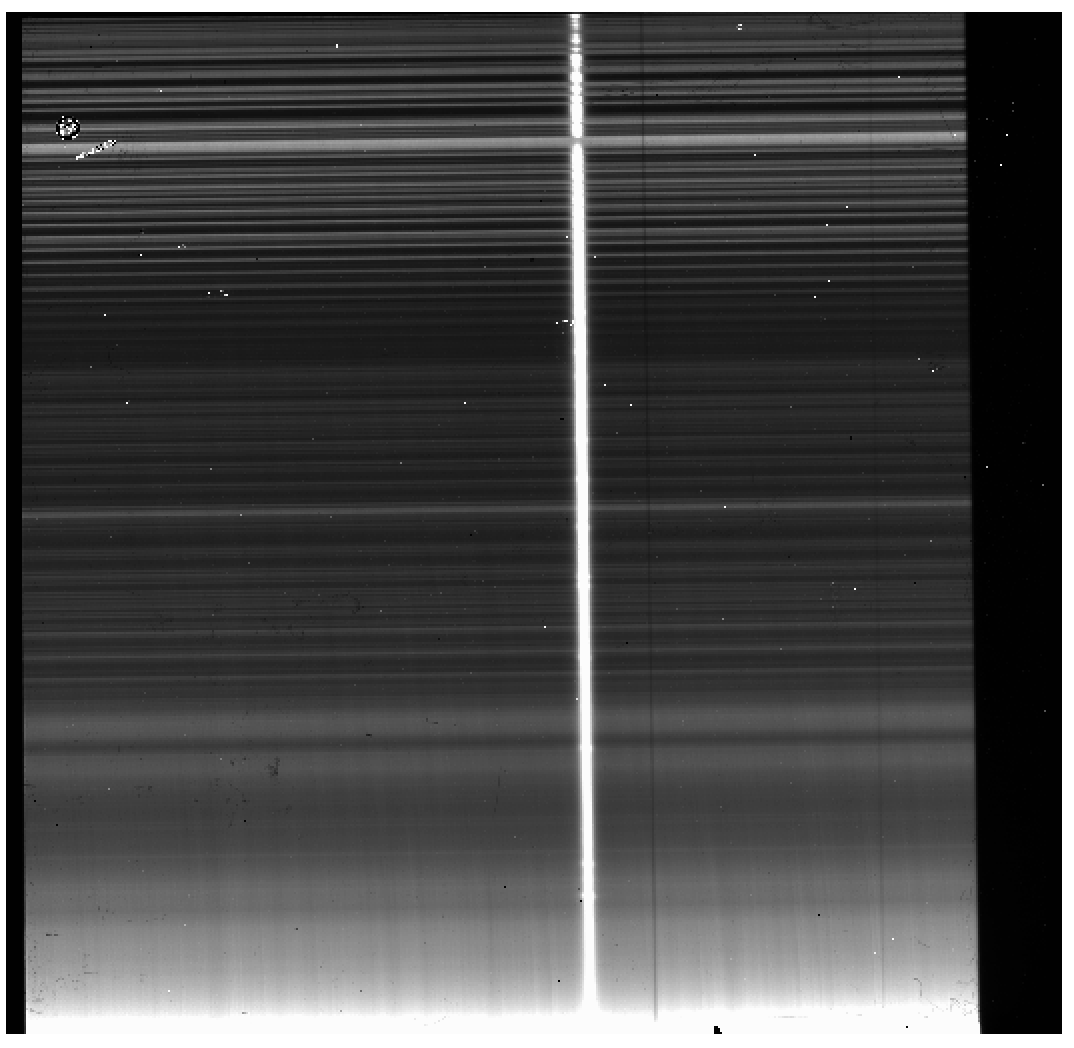

This is what one raw image looks like.

raw science image

With all the calibrations in the local calibration manager, simply call reduce on the science frames to get an extracted spectrum.

reduce @sci.lis

To run the reduction with all the interactive tools activated, set the interactive parameter to True.

reduce @sci.lis -p interactive=True

The default fits are all good, though the trace can be improved by setting the order to 4 (interactively or with -p traceApertures:order=4).

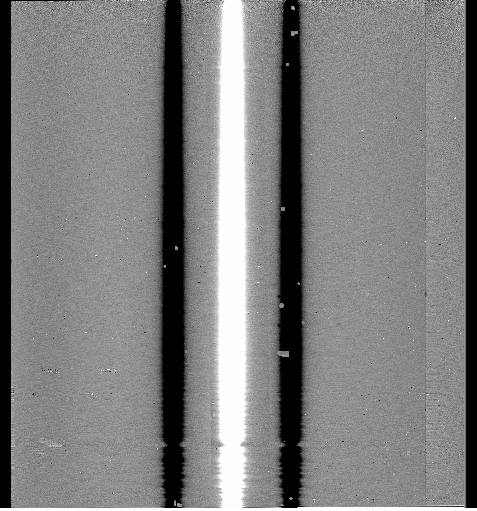

The 2D spectrum before extraction looks like this, with blue wavelengths at the bottom and the red-end at the top.

2D spectrum

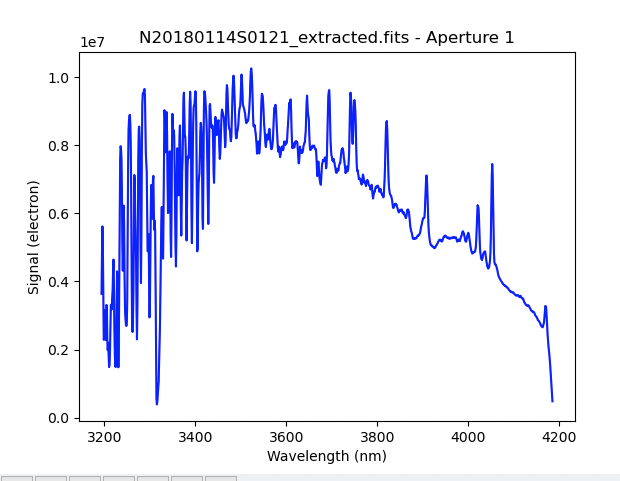

The 1D extracted spectrum before telluric correction or flux calibration, obtained with -p extractSpectra:write_outputs=True, looks like this.

1D extracted spectrum before telluric correction or flux calibration

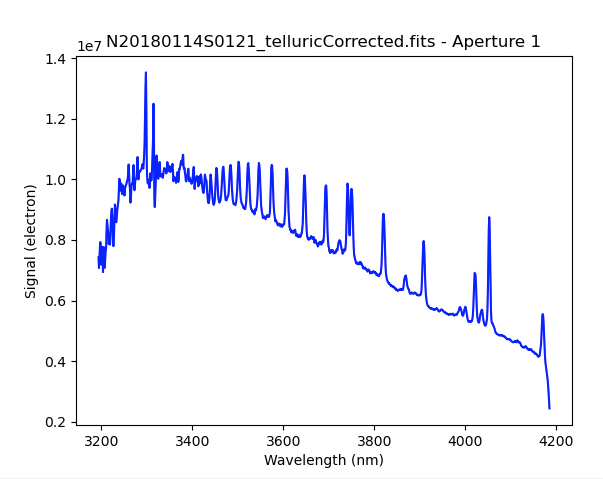

The 1D extracted spectrum after telluric correction but before flux calibration, obtained with -p telluricCorrect:write_outputs=True, looks like this.

1D extracted spectrum after telluric correction or before flux calibration

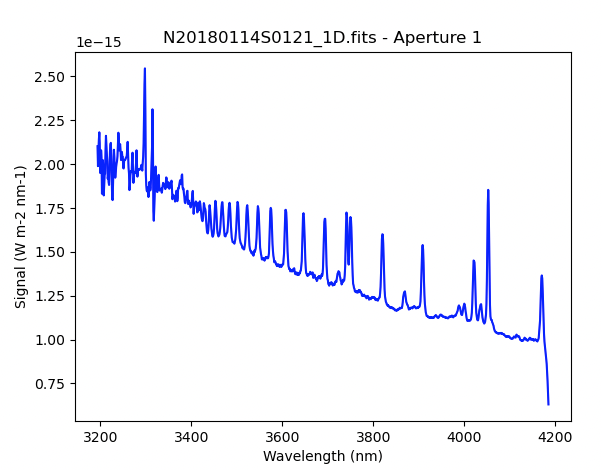

And the final spectrum, corrected for telluric features and flux calibrated.

dgsplot N20180114S0121_1D.fits 1
1D extracted spectrum after telluric correction and flux calibration
